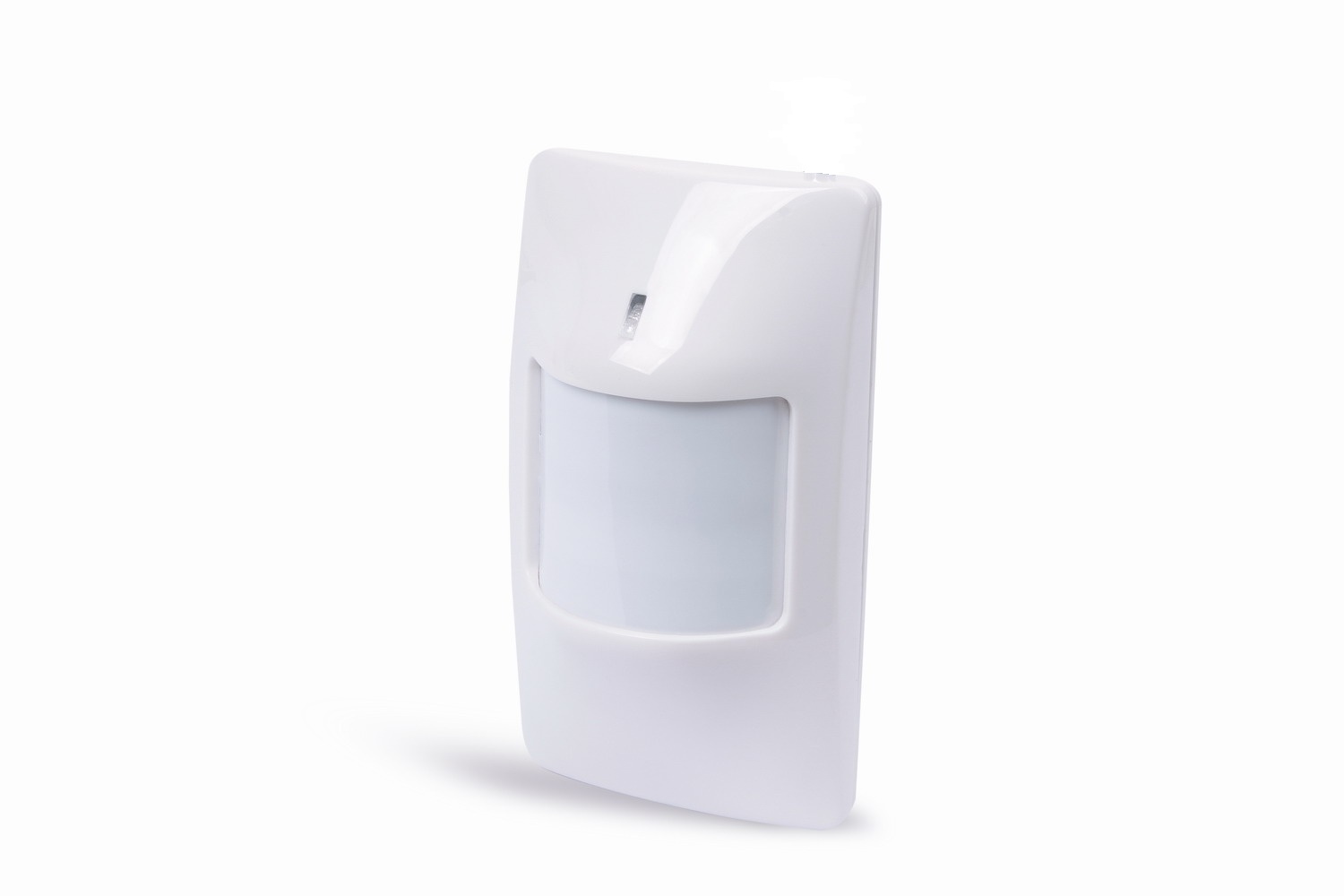

Battery Powered Wireless PIR Sensor with FAQ

Battery Powered Wireless PIR Sensor with FAQ

Features:

• Automatically turns on paired LiteTransform - controlled lightings or appliances.
• Automatically turns off after motion is seized. ( Selectable timing between 10 Seconds and 1 Hour.) 10s, 1 min, 5 mins, 10 mins, 20 mins, 30 mins, 1 Hour
• Low voltage reminder when battery down to 2.2V
• Anti-electromagnetic interference, Anti False alarm
• Automatic Temperature Compensation,high Detection sensitivity
• SMT Patch technology,Strong anti-interference ability
• Large capacity battery,Micro power design,battery life to 2 years+

Specifications

• Operating supply: DC3V from 2 X AA Battery
• Transmission Current: 20mA~25mA (While Transmitting)
• Standby Current: 45uA(While monitor)
• Operating Frequency: 315MHz / 433±0.2Mhz
• Transmitting Distance: 100-300m (unenclosed ground)
• The largest coverage: 12*12m
• Detection Angle: 120°
• Detection distance : 8-12m (25ºC)
• Bracket with Adjustable Angle: -45°to +45°(Horizontal line)
• Bracket with Adjustable Angle: -15°to+45°(Vertical line)
• Response Time: 6s
• Dimension (LWH): 110 X 65 X 48mm
• Operating environment: -10ºC – 50ºC; Humidity: ≤ 80%RH
• Lifespan of battery: It can be used for one year if send 20 times everyday !

Picture of the Wireless PIR's  Application

How it works ?

When the sensor detects motion,it sends a wireless command to the paired devices (such as Touch Switch, Lighting controllers). Then it turns on linked devices such as wall lights,down lights and etc. After a selectable time of no motion, the sensor turns those same lights or appliances off.




Applications

• Bathrooms or restrooms, for lights and exhaust fans.
• Staircases
• Garage,Parking lights
• Garden Lights
• Corridors,Living rooms
• and many more

Special Notes for PIR:

There are certain factors which can cause detection range / reliability to vary. Because PIR sensors rely on changes in heat to detect motion, be aware of the following factors that can effect PIR reliability when choosing a location to mount your PIR Motion Sensor:
